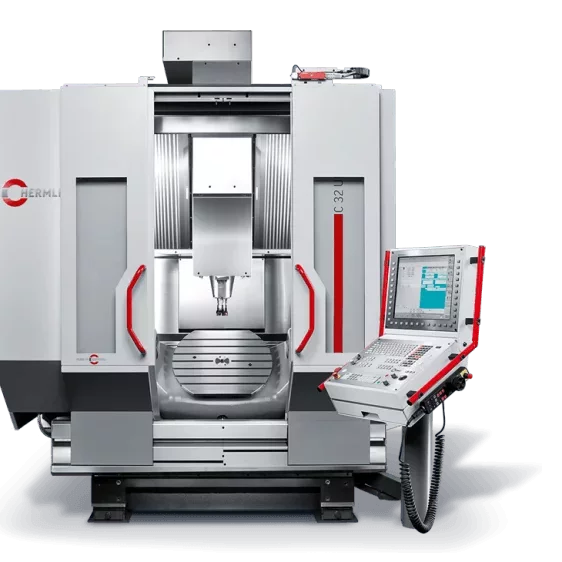

C 32

The C 32 machining centre can machine workpieces weighing up to 1000 kg in five axes simultaneously. The machining centre can even deal with difficult-to-machine materials in record time and perfect precision – even fully automated and always with unbeatable operating comfort! The scope of usage for the C 32 is very wide.

Insights into the C 32

  • The C 32 machining centre can machine workpieces weighing up to 1000 kg in five axes simultaneously.
  • The C 32 machining centre uses two axes in the workpiece and three axes in the tool.

Key Features

Traverse path 650 x 650 x 500 mm
Body dia. 650 / H 420
Collision circle dia. 840 mm
Max. vertical table clearance 600 / 635 mm
Speed 15000/18000/25000/42000 1/min
Rapid traverse linear X-Y-Z (60)–45 (60)–40 (60) m/min.
Swivelling rotary table dia. 650 x 540 mm
Max. table load 1000 kg

“The first automated system from Kingsbury for machining calipers proved so successful that we had no hesitation in following a similar route this time. All of the production benefits apply to the second cell as well.”

– Brian Cutler, Production Engineering Manager

See how Alcon Components halved cycle times on the production of brake calipers

Alcon Components Case Study

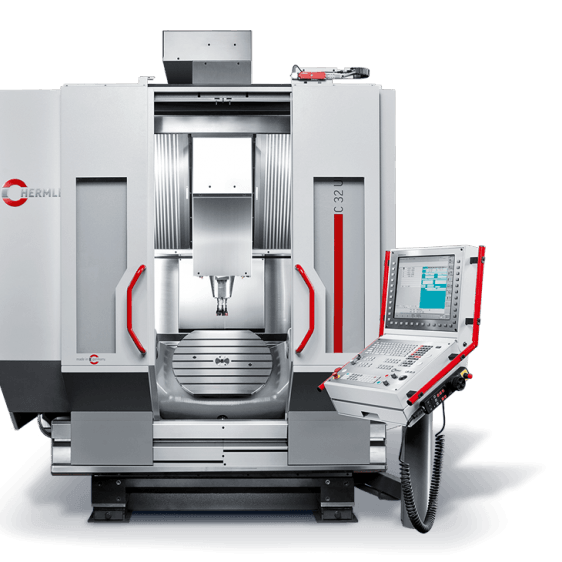

Putting the Hermle C 32 in the spotlight…

The C 32 can machine workpieces weighing up to 1000kg in five axes simultaneously. The machine uses two axes in the workpiece and three axes in the tool. It offers dynamic positioning, minimal idle times and can accommodate a large range of workholding solutions.
