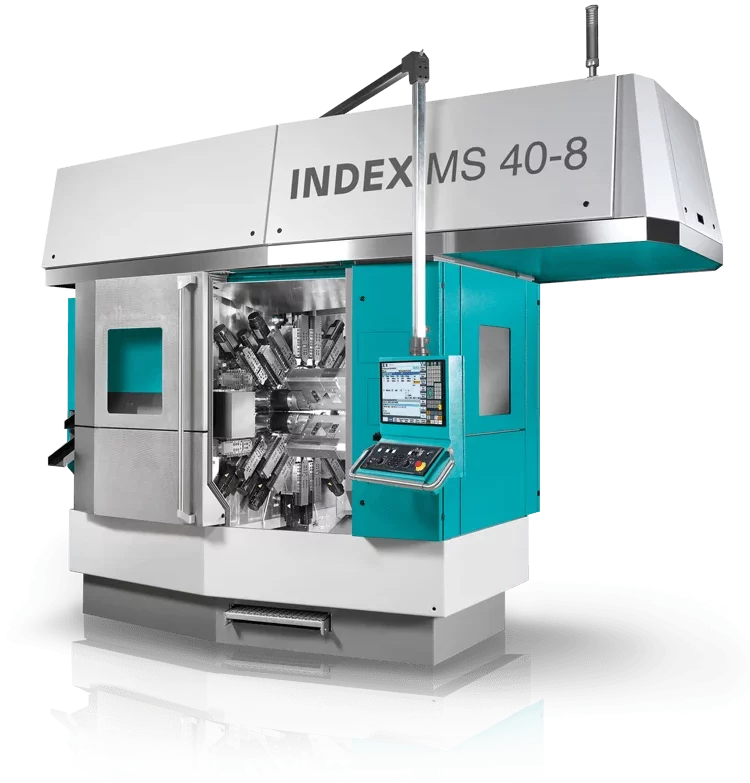

Index MS40-8
With the totally configurable INDEX MS40-8, we offer a machine concept that meets all requirements and the most stringent demands. Eight main spindles, up to two swiveling synchronous spindles, and up to eighteen tool carriers, which can be configured in XYZ, enable high-productivity manufacturing. All aspects of the INDEX MS40-8 were developed using state-of-the-art manufacturing technologies. Generously dimensioned and freely accessible, the work area minimizes setup cost, especially for changeovers. Unhindered chip fall is ensured even with full tooling.
Contact the team
INDEX CNC multi-spindle machines with live tools, C-axis, and Y-axis give you access to entirely new processes, such as: Off-center drilling and thread cutting, inclined drilling, cross drilling, contour milling, hobbing (tooth cutting), polygon turning.
- Highly-dynamic slide with sliding guide (X-axis)
- Non-wearing Z-axis dueto quills with hydrostatic support
- Front-opening machine for bar machining
- Chuck part machining with loading and unloading by robots
- Directed part discharge through linear handling
- Extremely fast swiveling synchronous spindles with C-axis
- Swing arm is locked by three-piece Hirth coupling in machining position, ensuring maximum rigidity
| Work spindles 8 | Max. bar diameter mm 40 | |
| Speed * rpm 7,000 | ||
| Drive power (100%/25% DC) kW 13/24 | ||
| Torque (100%/25% DC) Nm 31/57 | ||
| Tool carrier 16 | Slide travel X mm 85 | |
| Slide travel Z mm 120 | ||
| Slide travel Y mm 42 | ||
| Synchronous spindle 1/2 | Max. clamping diameter mm 40 | |
| Speed Nmax. rpm 8,000 | ||
| Speed Nrated rpm 6,000 | ||
| Drive power (100%/40% DC) kW 10/14 | ||
| Torque (100%/40% DC) Nm 16/22 | ||
| Swiveling angle of synchronous spindles deg. 190 | ||
| Slide travel Z mm 150 | ||
| Number of tools for rear-end machining 7/14 | ||
| Back-boring slides 7.3 / 8.3 (optional) | ||
| Tool carriers for rear-end machining 1/2 | ||
| Slide travel X mm 82 | ||
| Number of tools for rear-end machining 3/6 | ||
| Of which driven 2/4 | ||
| Back-boring slides 7.4 / 8.4 (optional) | Tool carriers for rear-end machining 1/2 | |
| Slide travel X mm 45/55 | ||
| Slide travel Z mm 120 | ||
| Number of tools for rear-end machining 1/2 | ||
| Of which driven 1/2 | ||
| Machine dimensions | Length x width x height mm 4010 x 2142 x 3216 | |
| Weight kg 10,300 | ||
| Connected power 66-104 kW, 78-123 kVA, 113-177 A, 400 V, 50/60 Hz | ||
| Control | Siemens S840D sl | |
| Options | Polygon turning, hobbing, tool monitoring, Y axis, transmit function |
