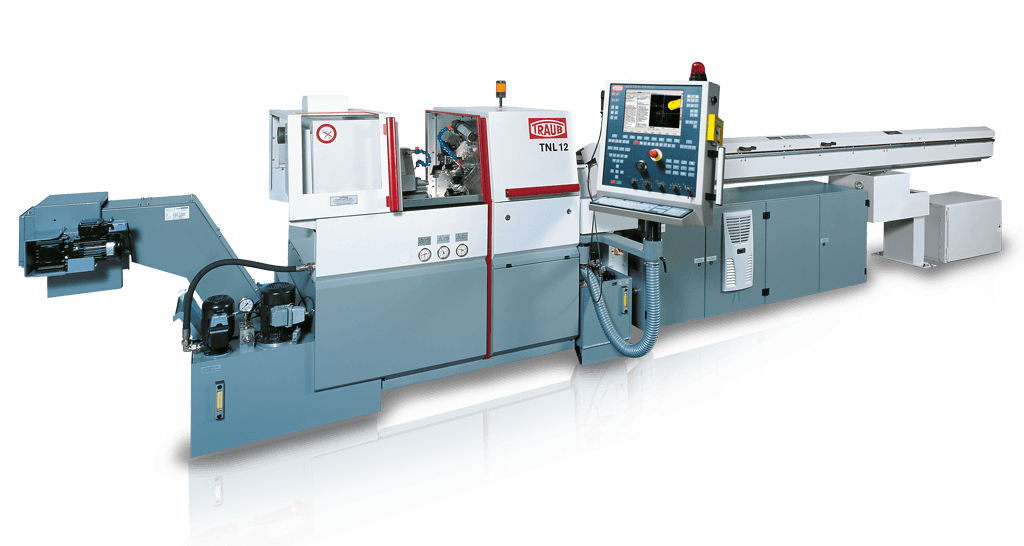

TNL12

Ideal for your production requirements.

Insights into the TNL12

  • The open control concept with a superfast 64-bit processor ensures that you have your production under control at all times. Whether tool breakage monitoring, realistic real-time simulation for shorter setup times or visual collision detection before running in the machine. The TNA300 has all this as standard.
  • Simultaneous and independent working of up to 4 tool carriers for highly productive machining in one clamping
  • 2 independent working levels (patented) ensure absence of collisions
  • Optimum operating ergonomics provided by the work area accessible on both sides
  • Hydraulic hollow clamping cylinders for main spindle and counter spindle
  • Highest precision due to thermal symmetric machine structure
  • Guide bushings freely selectable: fixed, following or programmable

Key Features

Main spindle Bar capacity 13(16)mm
Speed max 12,000rpm
Power max 4kW
C axis resolution 0.001 degree
Slide travel Z 130mm
Slide travel Z 80mm
Slide travel Z 50mm
Rapid traverse Z 30m/min
Counter spindle Bar capacity 13 (16)mm
Speed max 12,000rpm
Power at 100% / 40% 4kW
C axis resolution 0.001degrees
Slide travel Z, rapid traverse 139 / 30mm / m/min
Tool carrier 1 Equipped as Revolver
Number of stations 6
Speed max 8,000rpm
Power max 1.5kW
Chip-to-chip time 0.3s
Slide travel X, rapid traverse 35 / 15mm / m/min
Slide travel Y, rapid traverse -9.5/+28 / 15mm / m/min
Tool carrier 2 Equipped as Revolver
Number of stations 6
Speed max 8,000rpm
Power max 1.5kW
Chip-to-chip time 0.3s
Slide travel X, rapid traverse 35 / 15mm / m/min
Slide travel Z, rapid traverse 50 / 15mm / m/min
Front working attachment Number of stations 4
Speed max 12,000rpm
Power max 4kW
Slide travel X, rapid traverse 222 / 30mm / m/min
Slide travel Z, rapid traverse 139 / 30mm / m/min
Backworking attachment Number of stations 4
Speed max 8,000rpm
Power max 1.5kW
Slide travel X, rapid traverse 39 / 15mm / m/min
Dimensions, weight, connecting power Weight 2,000kg
Connecting power 16kW
Control TRAUB TX8i-s Damit haben Sie ihre Produktion sicher im Griff
