TNL20

Machine highlights TNL20: Simultaneous machining with 2, 3 or 4 tools. High tool pool for set-up-friendly production. Short tool changing times by means of CNC indexing axis in the tool turrets and in the front working attachment. Generous and process-reliable work area. Intelligent automation through the integrated robot cell iXcenter.

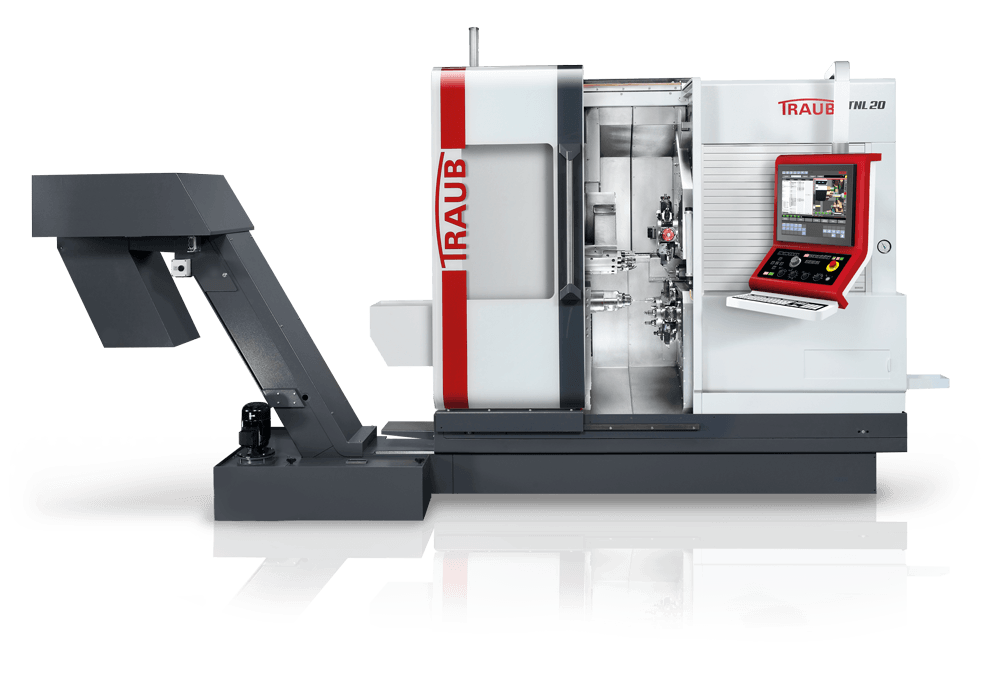

Traub TNL20 sliding headstock automatic lathe

Insights into the TNL20

  • The machine concept of the TNL20 has been systematically matched to the daily requirements of the user. So the kinematics of the machine allows effective and simultaneous machining with two or three tools.The generous and vertically arranged work area provides for the necessary degrees of freedom, as well as for very high process reliability. The machine's crucial productivity advantage is the result of its extraordinarily high dynamics. The newly developed machine bed from gray cast iron forms the basis for utmost vibration dampening properties. And the high rigidity and thermal stability ensure optimum workpiece quality.
  • Simultaneous machining with 2, 3 or 4 tools
  • High tool pool for set-up-friendly production
  • Short tool changing times by means of CNC indexing axis in the tool turrets and in the front working attachment
  • Generous and process-reliable work area
  • Intelligent automation through the integrated robot cell iXcenter

TNL20-9

Main spindle Bar capacity 20mm
Speed max 10,000rpm
Power at 100% / 40% 3.0/5.5kW
Torque at 100% / 40% 5.73/10.5Nm
C axis resolution 0.001 degree
Slide travel Z (swiss / non-swiss type) 205/80mm
Rapid traverse Z 20m/min
Counter spindle Bar capacity 20mm
Speed max 10,000rpm
Power at 100% / 40% 3.0 / 5.5kW
Torque at 100% / 40% 5.7 / 10.5Nm
C axis resolution 0.001degrees
Slide travel X, rapid traverse 235.5 / 20mm / m/min
Slide travel Z, rapid traverse 258 / 40mm / m/min
Tool carrier 1 Number of stations 8
Speed max 12,000rpm
Power at 100% / 40% 1.0 / 2.0kW
Slide travel X, rapid traverse 120 / 20mm / m/min
Slide travel Y, rapid traverse +- 25.4 / 20mm / m/min
Slide travel Z, rapid traverse 155 / 40mm / m/min
Tool carrier 2 Number of stations 8
Speed max 12,000rpm
Power max 2kW
Slide travel X, rapid traverse 120 / 21mm / m/min
Slide travel Y, rapid traverse -20/+40 / 21mm / m/min
Slide travel Z, rapid traverse 250 / 50mm / m/min
Dimensions, weight, connecting power Weight 5,000kg
Connecting power 40kW
Control iXpanel - i4.0 ready TRAUB TX8i-s V8

TNL20-11

Main spindle Bar capacity 20mm
Speed max 10,000rpm
Power at 100% / 40% 3.0 / 5.5kW
Torque at 100% / 40% 5.7 / 10.5Nm
C axis resolution 0.001degrees
Slide travel Z (swiss / non-swiss type) 205 / 80mm
Rapid traverse Z 20m/min
Counter spindle Bar capacity 20mm
Speed max 10,000rpm
Power at 100% / 40% 3.0 / 5.5kW
Torque at 100% / 40% 5.7 / 10.5Nm
C axis resolution 0.001degrees
Slide travel X, rapid traverse 210 / 20mm / m/min
Slide travel Z, rapid traverse 258 / 40mm / m/min
Tool carrier 1 Number of stations 8
Speed max 12,000rpm
Power max 2.0kW
Slide travel X, rapid traverse 120 / 20mm / m/min
Slide travel Y, rapid traverse +-25.4 / 20mm / m/min
Slide travel Z, rapid traverse 205 / 40mm / m/min
Tool carrier 2 Number of stations 8
Speed max 12,000rpm
Power max 2.0kW
Slide travel X, rapid traverse 120 / 20mm / m/min
Slide travel Y, rapid traverse +-25.4 / 20mm / m/min
Slide travel Z, rapid traverse 155 / 40mm / m/min
Front working attachment Number of stations 6
Speed max 12,500rpm
Power max 2DS$0kW
Slide travel X, rapid traverse 51 / 20mm / m/min
Slide travel Z, rapid traverse 205 / 40mm / m/min
Dimensions, weight, connecting power Weight 5,400kg
Connecting power 28kW
Control iXpanel - i4.0 ready TRAUB TX8i-s V8
