TNL32

Three variants with measurable benefits for your production.

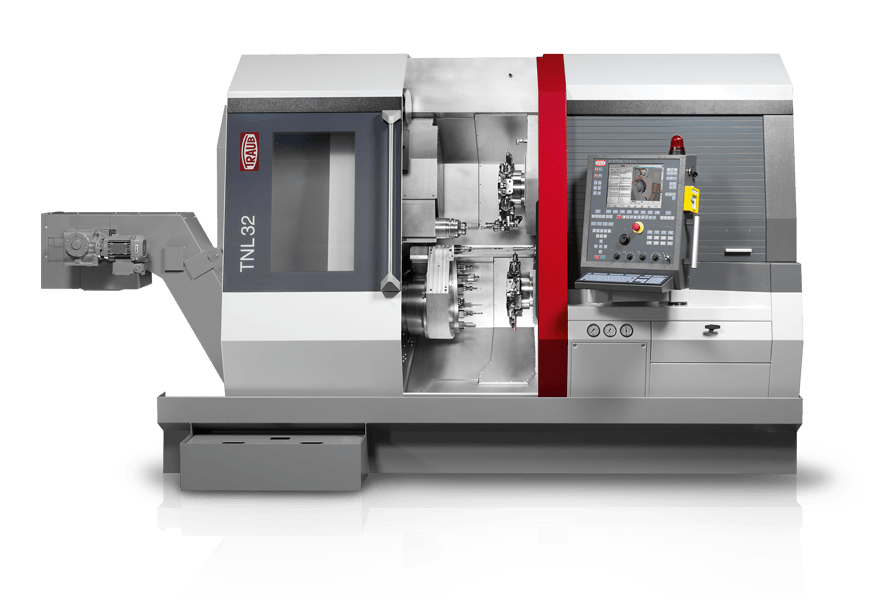

Traub TNL32 sliding headstock automatic lathe

Insights into the TNL32

  • Large tool pool in the smallest space. The tooling circle corresponds to remarkable 1,444 mm of Y-travel unwrapped, beating any linear tool carrier. The rotating movement of the turrets is performed as an NC axis without mechanical lock. This allows you to position the turret very fast at any angle.
  • Simultaneous machining with up to 3 tools (each tool with variable feed rate)
  • Clearly structured work area with large axis travels and wide tooling circles
  • Excellent accessibility through a large sliding cover
  • Easy changeover between sliding and fixed headstock operation
  • Very compact machine design with small footprint
  • Highest precision due to thermal symmetric machine structure
  • DualDrive: New tool drive system from TRAUB

Variant - 11

Main spindle Bar capacity 32mm
Speed max 8,000rpm
Power at 100% / 40% 6.7/107.kW
Torque at 100% / 40% 21/32Nm
C axis resolution 0.001 degree
Slide travel Z 305/127mm
Rapid traverse Z 20m/min
Counter spindle Bar capacity 32 (30 bei Abführung durch Gegenspindel)mm
Speed max 6,400rpm
Power at 100% / 40% 3.7 / 5.5kW
Torque at 100% / 40% 29.4 / 43.7Nm
C axis resolution 0.001degrees
Slide travel X, rapid traverse 140 / 20mm / m/min
Slide travel Z, rapid traverse 300 / 20mm / m/min
Tool carrier 1 Equipped as Revolver
Number of stations 10
Speed max 12,000rpm
Power max 3.4kW
Slide travel X, rapid traverse 140 / 20mm / m/min
Slide travel Y, rapid traverse -40/+25 / 20mm / m/min
Slide travel Z, rapid traverse 305 / 20mm / m/min
Tool carrier 2 Equipped as Revolver
Number of stations 10
Speed max 12,000rpm
Power max 3.4kW
Slide travel X, rapid traverse 140 / 20mm / m/min
Slide travel Y, rapid traverse -25/+40 / 20mm / m/min
Slide travel Z, rapid traverse 250 / 20mm / m/min
Front working attachment Number of stations 8 (davon 4 angetrieben)
Speed max 12,000rpm
Power max 3.4kW
Slide travel X, rapid traverse -40/+10 / 20mm / m/min
Slide travel Y, rapid traverse 250 / 20mm / m/min
Dimensions, weight, connecting power Weight 7,350 (abhängig von Ausstattung)kg
Connecting power 28kW
Control TRAUB TX8i-s Damit haben Sie ihre Produktion sicher im Griff

Variant - 7B

Main spindle Bar capacity 32mm
Speed max 8,000rpm
Power at 100% / 40% 6.7 / 10.7kW
Torque at 100% / 40% 21 / 32Nm
C axis resolution 0.001degrees
Slide travel Z 305 / 127 (Langdreher / Kurzdreher)mm
Rapid traverse Z 20m/min
Counter spindle Bar capacity 32mm
Clamping depth max 250mm
Speed max 8,000rpm
Power at 100% / 40% 2 / 4.5kW
Torque at 100% / 40% 6.9 / 15.3Nm
C axis resolution 0.001degrees
Tool carrier 1 Equipped as Revolver mit B-Achse
Number of stations 10
Speed max 12,000rpm
Power max 3.4kW
Slide travel X, rapid traverse 215 / 20mm / m/min
Slide travel Y, rapid traverse -40/+25 / 20mm / m/min
Slide travel Z, rapid traverse 720 / 40mm / m/min
B-axis swivel angle 100degrees
Tool carrier 2 Equipped as Revolver
Number of stations 9
Speed max 12,000rpm
Power max 3.4kW
Slide travel X, rapid traverse 140 / 20mm / m/min
Slide travel Y, rapid traverse -25/+40 / 20mm / m/min
Slide travel Z, rapid traverse 320 / 20mm / m/min
Backworking attachment Number of stations 8 (davon 4 angetrieben)
Speed max 12,000rpm
Power max 3.4kW
Dimensions, weight, connecting power Weight 7,000 (abhängig von Ausstattung)kg
Connecting power 28kW
Control TRAUB TX8i-s Damit haben Sie ihre Produktion sicher im Griff

Variant - 9

Main spindles Bar capacity 32mm
Speed max 8,000rpm
Power at 100% / 40% 6.7 / 10.7kW
Torque at 100% / 40% 21 / 32Nm
C axis resolution 0.001degrees
Slide travel Z 305 / 127 (Langdreher / Kurzdreher)mm
Rapid traverse Z 20m/min
Counter spindle Bar capacity 32 (30 bei Abführung durch Gegenspindel)mm
Speed max 6,400rpm
Power at 100% / 40% 3.7 / 5.5kW
Torque at 100% / 40% 29.4 / 43.7Nm
C axis resolution 0.001degrees
Slide travel X, rapid traverse 140 / 20mm / m/min
Slide travel Z, rapid traverse 300 / 20mm / m/min
Tool carrier 1 Equipped as Revolver
Number of stations 10
Speed max 12,000rpm
Power max 3.4kW
Slide travel X, rapid traverse 140 / 20mm / m/min
Slide travel Y, rapid traverse -40/+25 / 20mm / m/min
Slide travel Z, rapid traverse 300 / 20mm / m/min
Tool carrier 2 Equipped as Revolver
Number of stations 10
Speed max 12,000rpm
Power max 3.4kW
Slide travel X, rapid traverse 140 / 20mm / m/min
Slide travel Y, rapid traverse -25/+40 / 20mm / m/min
Slide travel Z, rapid traverse 320 / 20mm / m/min
Dimensions, weight, connecting power Weight 7,350 (abhängig von Ausstattung)kg
Connecting power 28kW
Control TRAUB TX8i-s Damit haben Sie ihre Produktion sicher im Griff
