Mill/ Turn

The latest generation of mill/turn machines from Europe blurs the boundaries between traditional lathes and machining centres.

Mill/ Turn Machines

A mill turn, or multitasking machine, commonly refers to a machine that is capable of both milling and turning operations that can include the use of live tooling. A typical mill turn configuration has multiple axes which, as a minimum include an x, y and c-axis. These allow for milling operations along the length of the part as well as traditional OD and ID lathe turning operations.



The axes that characterise mill turn machines are described in detail below:



  • X-axis – This refers to the movement perpendicular to the axis of the stock, this is the normal lathe cutting axis.
  • Z-axis – This refers to movement along the axis of the stock, it is used when holes are drilled into the centre of the stock, and is also one of the traditional lathe axes.
  • C-axis – This refers to movement around the axis of the stock. This axis is the same axis as the spindle, however during milling operations the main spindle drive is typically disengaged and a servo drives the c-axis to allow for accurate positioning. A c-axis allows for slots to be cut into the part and results in angled walls and curved bottoms.
  • Y-Axis – This refers to movement perpendicular to the axis of the stock with a live tool or seperate milling head, and works in conjunction with the c-axis to mill slots and flat features into the part. Y-axis machining results in slots with straight sides and flat bottoms.



A mill turn has a turret tooling setup which allows for the inclusion of both stationary tools as well as live tools for milling operations. This is the key way in which a traditional lathe differs from a mill turn machine.



More advanced machines can have a sub spindle, multiple tool turrets and a separate milling head with a b-axis that lets the tool rotate in relation to the axis of the stock. These advanced mill turn machines can approach the efficiency of automatic turning lathes.

Advantages of a mill turn



A mill turn is ideal for a job shop that wants to improve manufacturing efficiency. Listed below are some of the key advantages of a mill turn machine:



  1. One set-up – mill turn machines allow for single set-up operations. Instead of first doing operations on the lathe then setting up the part on the mill, mill turns can do the work of both machines with only one set-up. Resulting in ‘done-in-one’ parts.



  1. Tooling – mill turn tools can have multiple turret tool posts with indexed tools. This allows for all the tools required for a job to be setup in advance allowing the machine to run uninterrupted until the part is done. Some machines also have automatic tool changers which further expand the tool inventory.



  1. Consistency – Parts machined in one setup can achieve a higher level of accuracy when compared to parts that are moved between machines, every time a part is moved to a new machine, another variable is added to the equation which increases the likelihood of errors on the final part. A mill turn effectively eliminates human error due to part handling and set-up.



Which mill turn right for you?

A mill turn is ideal for parts that would require both milling and turning machines, for example if a part requires flat features along its length or if holes are required in the side of a cylindrical part. A mill turn is ideal for parts where the milling required on the part is less than 25%. The machines allow for unmatched speed and efficiency for these types of parts. If you run a job shop then a mill turn is a must have, as it drastically increases the range of parts that can be machined in one operation. KIngsbury offer top of the line mill turn machines that provide unmatched functionality and efficiency.

“The uprated-specification G200 has resulted in reductions in cycle times of up to 28 per cent. It is a direct result of the faster machine movements and more powerful control, as exactly the same programs are being used as on the older machine.”

– Ian Keeley, Senior Manufacturing Engineer

In the mid 1990s, Chas A Blatchford & Sons bought an INDEX G200 turn-mill centre, having decided it was the best machine for manufacturing metal components used in prosthetics for lower limbs. A recent reappraisal of machines on the market showed that the German machine tool builder’s technology is still the best production solution, 15 years on.

Blatchford Case Study

Related News

Flexible manufacturing system for Airbus wing components

A flexible manufacturing system (FMS) for producing small to medium-si...

New cell for machining Airbus engine pylons

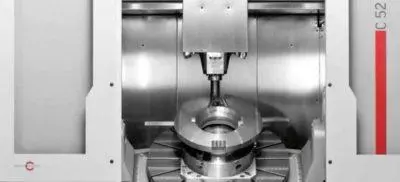

Hermle twin-pallet machining centre from Kingsbury chosen for finishin...
